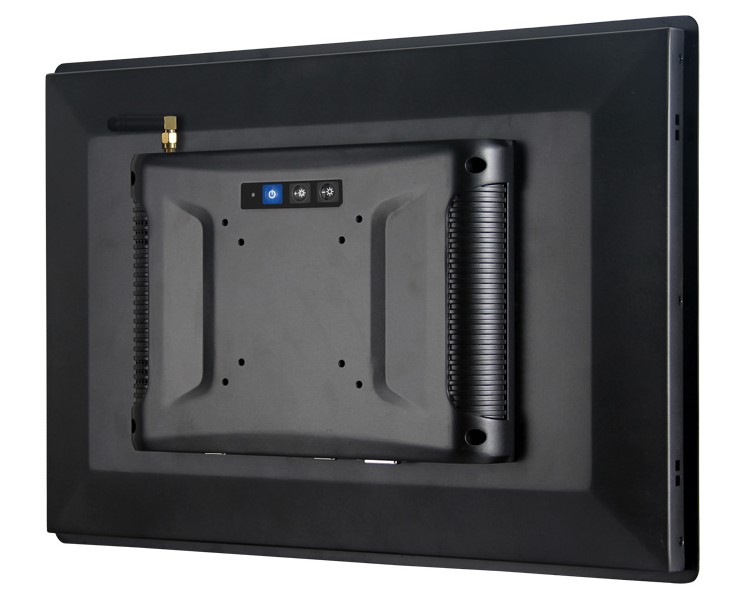

21.5 inch Industrial Panel PC; XS215-W210-4125
21.5 inch Industrial Panel PC; XS215-W210-4125
|
|
Display |
|
Panel Type |
Industrial A grade LCD with LED backlight |
Aspect Ratio |
16:9 |
Resolution |
1920*1080 |
Contrast |
1000:1 |
Luminance |
400nit, up to 1200 nits |
Response time |
5ms |
Active Area (mm) |
476.6*268.1 |
Display colors |
16.7M(8-bit) |
PC Configuration |
|
CPU |
Intel® Celeron® Processor J4125, 4M Cache, up to 2.70 GHz; |
Graphic Card |
Integrated Intel HD Graphics |
Inner memory |
4GB DDR4 1333 MHz RAM ( 8GB RAM can be customized) |
Storage |
256GB SSD (64GB/128GB/256GB/512GB SSD, 500GG/1TB HDD can be customized) |
Expansion Card Slot |
2xMini-PCIE slot, support SSD, WIFI, 3G module |
Audio |
Realtek ALG662 6 sound track audio frequency |
Internet |
1xRTL811E gigabit network card |
Operating System |
Pre-install Trial version Win10 Pro 64 bit OS; Option: Windows 7/8.1/10, WES7-E/P, WE8S, Ubuntu14.04 |
Support multi-language |
English/Portuguese/French…etc |
Touch Screen |
Default with 10-point capacitive touch, support Two-finger Touch Control while Wearing Gloves; |
Touch Screen Surface Hardness |
7 Mohs |
Touch Screen Transparency |
90% (±3%) |
I/O Ports |
1*12V DC_JACK input (ATX is optional) , |
2*RJ-45 network interface, |
|
Power Input |
AC 110-240V, 50/60Hz |
Power Consumption (Typical) |
1.53A @ 12V (18.4W) |
Power Consumption (Max) |
1.8A @ 12V (21.6W) |
Operation Temperature |
-10°C-60°C |
Storage Temperature |
-40°C-85°C |
Operation Humidity |
5%--80% |
Storage Humidity |
5%-90% |
Material |
Aluminum alloy enclosure |
Bezel Thickness |
3mm bezel |
IP Rating |
IP65 True Flat Front Panel |
Color |
Default with Black Color; Optional Silver Color; |
Installation Way |
Default with Embedded / Wall Mount bracket; VESA / Desktop optional |
Certification |
CE,FCC,ROHS,ISO9001 |
Warranty |
2years warranty (with the exception of man-made damage) |
Packaging |
EPE+Carton (wooden crate for mass order) |
Dimensions (L x W x H) |
21.5inch with 557 x 345 x 63 mm (21.93" x 13.59" x 2.48"); |
Packing List |
1 x XS215-W210; |
Applications |
Human Machine Interface (HMI); |
